By default, the bars in Aspen Graphics charts are yellow on a gray background. In addition to being able to change bar color attributes from the Bar Chart parameter menu, Aspen’s color rules enable you to color bars when certain market conditions exist. For example, you can color bars red when a bearish candlestick formation occurs, or green when a bullish candlestick formation occurs.
Color Rules support multi-line expressions.
To display the Color Rules dialog, choose Color Rules… from the Tools menu.

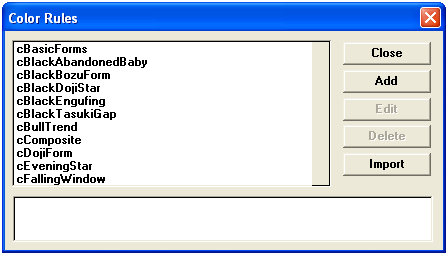

Choosing Color Rules... displays the Color Rules dialog.
The Color Rules dialog has five buttons:
|
Button |
Function |
|
Close |
Closes the Color Rule dialog.
|
|
Add |

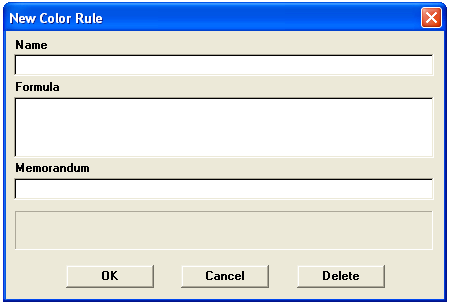

Displays the New Color Rule dialog:
|
|
Edit |

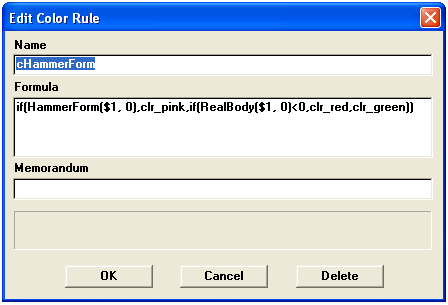

Displays the selected color rule in the Edit Color Rule dialog:
|
|
Delete |
Deletes the selected color rule.
|
|
Import |
Displays a file browser so you can navigate to the location of the colrules.txt file you want to import. |
